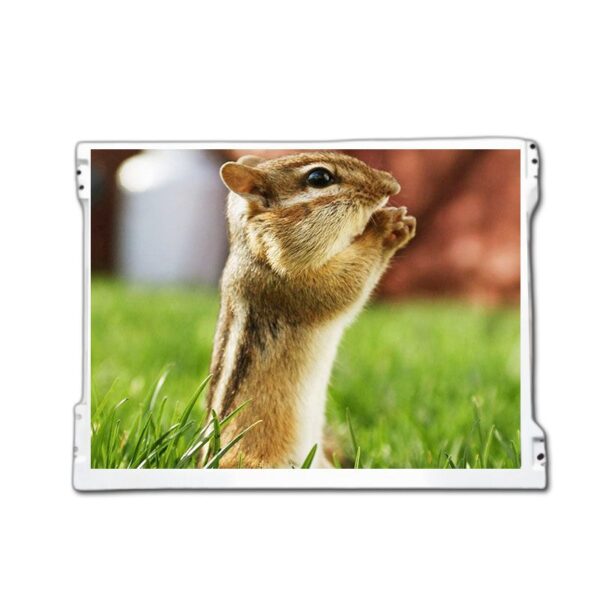

IVO M084GNS1 R1 8.4” TFT 800×600 LVDS 80/80/80/80 TN 50K Hrs LCD Panel

Description IVO M084GNS1 R1 8.4” TFT LCD Panel Description The IVO M084GNS1 R1 8.4” TFT LCD Panel features a resolution of 800*600, clearly presenting process parameters. With a brightness of 350 nits, it is suitable for indoor environments. It supports a wide temperature range of -20°C to 70°C and has an ultra-long backlight lifespan of 50,000 hours. We equip it with an LVDS interface as standard, and this interface is compatible with mainstream industrial control motherboards. It supports EMC customization for medical equipment and the bonding of explosion-proof glass for self-service terminals. IVO M084GNS1 R1 8.4” TFT LCD Panel Key Features Compatibility: LVDS interface enables smooth integration with industrial control, medical, POS, and automation systems. Lifespan: 50,000 hrs continuous operation, reducing downtime and maintenance costs. Temperature: Works stably in -20℃ to 70℃, perfect for outdoor/harsh industrial use. Construction: TN panel balances cost and performance, resists flicker & signal interference. Specs: 4:3 ratio, 6/5/6/6-bit color depth, 300:1 contrast for clear images. IVO M084GNS1 R1  TFT LCD Panel Model Number M084GNS1 R1 Operating Temperature -20~70℃ Size 8.4″ Storage Temperature -30~80℃ Resolution 800(RGB)×600 (SVGA) LED Lifetime 50,000 hrs Outline Dimension 203×142.5×6.2 mm Touchscreen Support Without Active Area 170.4×127.8 mm Contrast Ratio 600:1 Brightness(cd/m²) 350 Power Supply 3.3V Interface LVDS (20-pin) Display Type Color LCD View Direction TN Customizable Parts Display Cable We can adjust the length, position and pins of the cable according to your needs, or add additional connectors to enhance its functionality. Through customization, your circuit connections will be made safer and achieve more reliable performance. Customized glass and touch screen In order to improve the durability and performance of the monitor, you can choose to have a custom-cut cover glass for your monitor. You can select the thickness that suits you and opt for the optical bonding method, thus providing the monitor with protection against moisture and breakage. Contact us to get the best customized solution.   We provide comprehensive customization services: cable adjustments, capacitive/resistive touchscreen upgrades with custom glass, interface integration (HDMI, USB, etc.), connector modifications, PCB tweaks, cover glass additions, versatile mounting options, and custom backlights (voltage, brightness, color). Beyond these tailored services, our displays excel in diverse industry applications: Medical displays feature 1000-nit brightness and antibacterial glass for clear, sterile surgical environments; automotive console displays prioritize reliability; industrial HMIs use M12 connectors and IP67 coating to withstand harsh conditions; and visual access control displays deliver high brightness, HD quality, with customizable shapes. Submit your project requirements via our form, and our experts will provide a personalized solution framework within 48 hours. Visual access control displays deliver high brightness, HD quality, and shape customization. Submit your project requirements via our form for a personalized solution within 48 hours.
