WIRELESS BLUETOOTH 1D BARCODE SCANNER

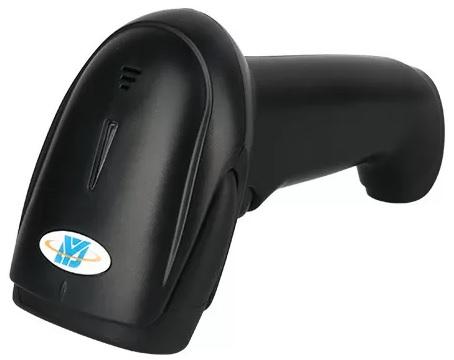

DY BARCODE SCANNER – DS5100CB DS5100CB is a high-performance 1D Bluetooth  And wireless 2.4G barcode scanner with leading CCD image recognition technology It can easily read the paper, goods, screen and other media barcodes Widely used in manufacturing, warehouse, logistics, health care, retail chain Mobile payment, express delivery, inventory management, food traceability, asset inventory, etc Features Ergonomic design, comfortable using Read all mainstream 1D barcodes in the market easily. (4mil) Interface: USB, Bluetooth 4.2,Wireless 2.4G. Dual mode: wired, wireless, Ultra-low power consumption Transmission distance 100m for 2.4G, long wireless distance 30m for Bluetooth Intelligent automatic connection when its beyond range, not manual setting Widely used in supermarket, warehouse, mobile payment, chain stores Application Supermarket Mobile payment  Courier Warehouse Retail chain Health care Cable Interface DS5100CB Scanner must be connected with terminals, PC host, POS and Android host etc Performance Scan Type: Linear CCD Light Source: Visible red light, 625±10nm CPU: 32-bit Resolution: 1500 Reading precision: =4mil/0.1mm(PCS90%,Code 39) Decoding speed: 300times/s Depth of field: 40mm-500mm Scan Mode Manual ,Continuous, flashing Scan angle Test Conditions:CODE39,10mil/0.25mm,PCS90% Pitch:±50°, Roll: ±30°, Skew: ±50° Print Contrast Signal: =25% Ambient Light :Dark environment, indoor natural light Wireless communication mode: Synchronization , storage Wireless transmission distance: 2.4GHz,100m, Bluetooth 30m(Open distance) Storage: 16Mb(over 100,000 Product code) Battery capacity : 2000mAh Battery charging time : About 7 h Continuous working time : =24h Symbologies: UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128,  Code 39,Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA) Codabar (NW-7, Plessey, MSI Plessey, RSS, China Post, etc Physical Parameter Weight: 160g(without cable) Dimension: L150mm x  W70mm x H95mm Communication: USB,Wireless 2.4G, Bluetooth 4.2. Interface Type: USB Power Supply: DC 5V@100mA(work) Environmental Operating: 0 to 50 Storage: -20? to 60? Humidity: 5% to 95%(non-condensing) Drop Height: 1.5m Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp High Temp: 60? Low Temp: -20? Transport: 10H@125RPM Accessories List Cable: USB, connect the scanner to a host device and charging Receiver: Used to receive and transmit scanner data     Related
