2D WIRELESS BLUETOOTH BARCODE SCANNER

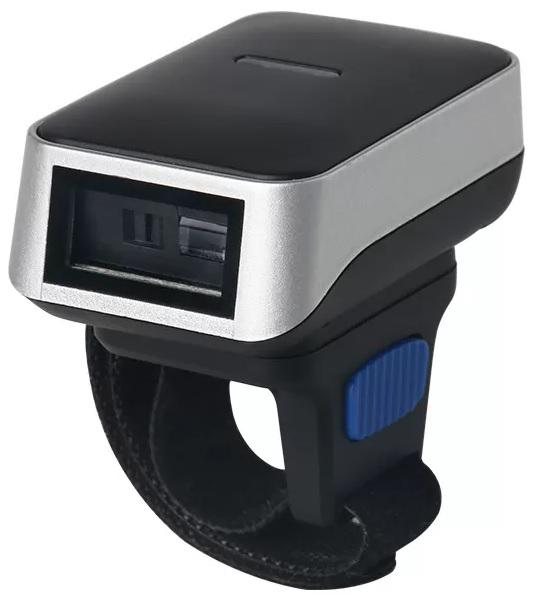

DY BARCODE SCANNER – DS6100CB DS6100CB Handheld 2D Barcode scanner DS6100CB is a high-performance 2D Wireless Bluetooth barcode scanner with leading CMOS image recognition technology It can easily read the paper, goods, screen and other media barcodes Widely used in manufacturing, warehouse, logistics, health care, retail chain Mobile payment, express delivery, inventory management, food traceability, asset Inventory, etc Features Ergonomic design, comfortable using Read all mainstream 1D 2D barcodes in the market easily. (4mil) Interface: USB, wireless 2.4G, Bluetooth Dual mode: wired, wireless, Ultra-low power consumption Transmission distance 100m, intelligent automatic connection when it’s  beyond range, not manual setting Widely used in supermarket, warehouse, mobile payment, chain stores Application Supermarket   Warehouse Mobile Payment               Retail Chain Courier Health Care Cable Interface DS6100CB scanner must be connected with terminals, PC host, POS and Android host etc Performance Light Source: Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) CPU: 32-bit Resolution: 640 x 480 Resolution: 4mil/0.1mm(PCS90%,Code 39) Decoding Speed: 25CM/S Scan Mode: Manual ,Continuous, Auto sense Scan angle: Test Conditions:CODE39, 10mil/0.25mm, PCS90% Roll±360 , Pitch±50, Skew±50 Print Contrast Signal: 25% Ambient Light: Dark environment, indoor natural light Wireless Communication Mode: Synchronization , storage  Wireless Transmission Distance: 2.4GHz,100m; Bluetooth,30 m(Open distance) Storage: 16Mb (over 100,000 barcodes ) Battery Capacity: 2000mAh Battery Charging Time: About 7 h Continuous Working Time: =20h Symbologies: 1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, Code 39,Code 93,Interleaved 2 of 5,Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar(NW-7,etc 2D: QR Code, Micro QR Code, Data Matrix,PDF417,etc Physical Parameter Weight: 160g(without cable) Dimension: L150mm x  W70mm x H95mm Communication: USB, wireless 2.4G, Bluetooth 4.2 Interface Type: USB Power Supply: DC 5V@150mA (work) Environmental Operating temperature: 0 to 50 Storage  temperature: -20 to 60 Humidity: 5% to 95%(non-condensing) Drop Height: 1.5m Temp. Test: 30 minutes for high Temp., 30 minutes for low Temp High Temp. 60 Low Temp. -20 Transport vibration Test: 10H@125RPM Accessories List Cable: USB, connect the scanner to a host device and charging Receiver: Used to receive and transmit scanner data           Related
